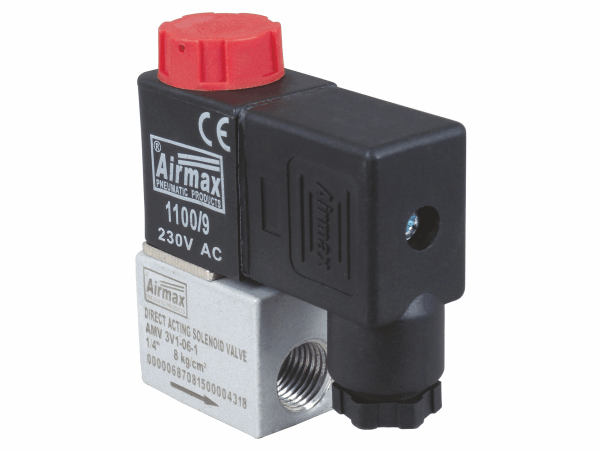

2/2 & 3/2 Way Direct Acting Solenoid Valve



Product Details

Model	AMV 2V - AMV 3V1
Size	1/4”
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	1 to 8 Kg/Cm²
Temperature	80°C
Media	Compressed Air (Filtered & Lubricated)
Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)

---

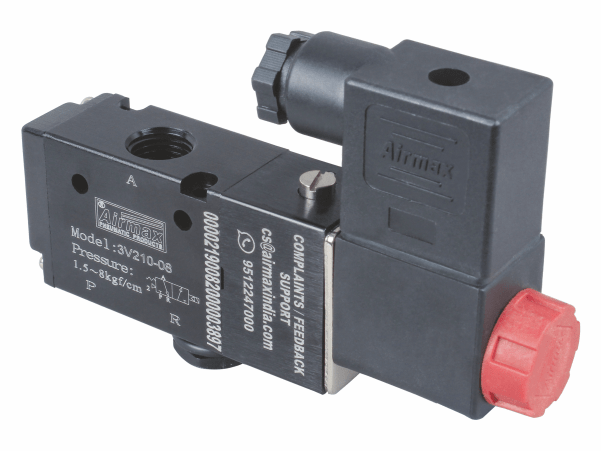

3/2 Way Single Solenoid Valve

Product Details

Model	AMV 3V 210
Size	1/4”,1/2”
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	1.5 to 8 Kg/Cm²
Temperature	80°C
Media	Compressed Air (Filtered & Lubricated)
Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)

---

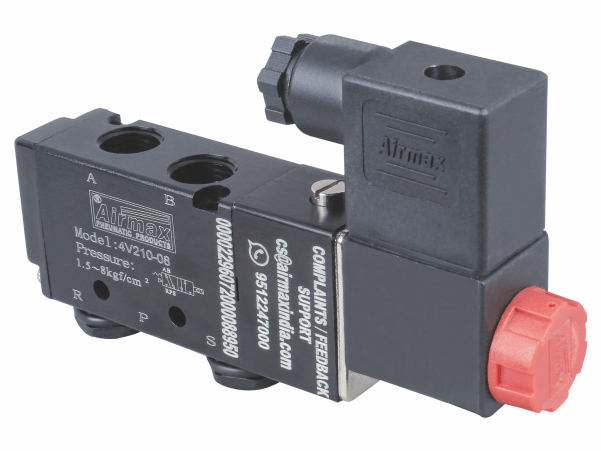

5/2 Way Single Solenoid Valve



Product Details

Model	AMV 4V 210
Size	1/4”, 1/2”
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	1.5 to 8 Kg/Cm²
Temperature	80°C
Media	Compressed Air (Filtered & Lubricated)
Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)

---

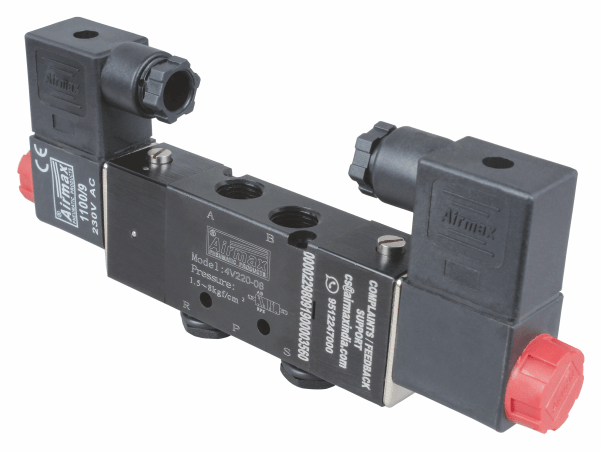

5/2 Way Double Solenoid Valve

Product Details

Model	AMV 4V 220
Size	1/4”, 1/2”
Body	Aluminium Press. Die Cast
Seals	Nitrile
Pressure	1.5 to 8 Kg/Cm²
Temperature	80°C
Media	Compressed Air (Filtered & Lubricated)
Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)

---

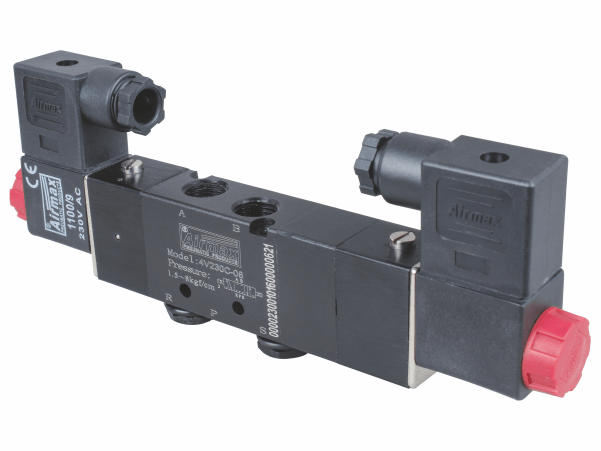

5/3 Way Double Solenoid Valve 3 Position

Product Details

Model	AMV 4V 230
Size	1/4”, 1/2”
Body	Aluminium Press. Die Cast
Valve Type	PAN | PHN | PRN
Seals	Nitrile
Pressure	1.5 to 8 Kg/Cm²
Temperature	80°C
Media	Compressed Air (Filtered & Lubricated)
Volt	12V, 24V, 48V, 110V, 230V, (AC / DC)
