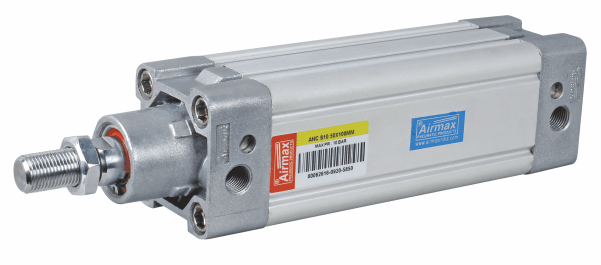

ANC Square Pneumatic Cylinder

Product Details

Bore (mm)	32 l 40 l 50 l 63 l 80 l 100 l 125
Piston Rod	12 l 16 l 20 l 20 l 25 l 025 l 032
Stroke	25mm to 500mm (Up to 2000mm)
Seals	Buna – N / Viton / P.U. / Hi-Nitrile (Viton on Request)
Pressure	0.5 ~ 10 kg/cm²
Temperature	-20°C ~ 80°C Max.
Tube	Aluminium Hard Anodized
End Cover	Aluminium Pressure Die Cast
Mounting	Female Clevise | Wall Bracket Mounting | Eye Rod Mounting | Fork Mounting Clevis Foot Bracke | Clevis Foot Mounting | Foot Mounting | Front & Rear Trunnion Mounting | Male Clevis | Pivot Mounting | Rod End Aligner Mounting Front/Rear Flange Mounting | Wall Bracket Mounting Female & Male Clevis | Center Trunnion Mounting
Media	Compressed Air - Filtered - Lubricated
Note	High temperature with Viton 0°C to 180°C available



Description

Airmax Make “ANC” Model (Square Profile Type) Pneumatic Cylinders as per ISO 15552 & VDMA 24562 Standard.

• Double Ended
• Single Acting. N/O, N/C
• Double Acting.
• Magnetic
• Adjustable Cushioning

---

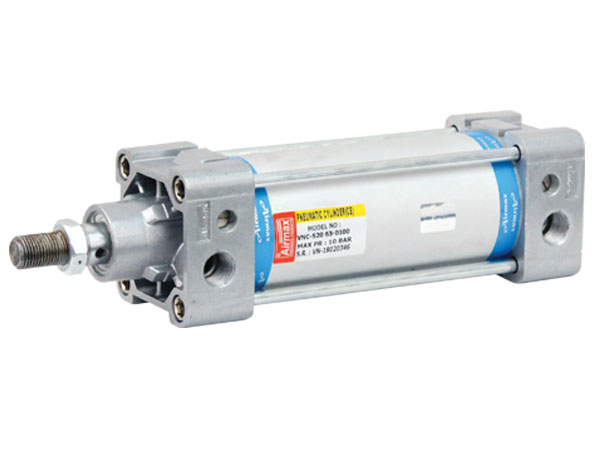

VNC Model Pneumatic Cylinder

Product Details

Bore (mm)	32 l 40 l 50 l 63 l 80 l 100 l 125 l 160 l 200 l 250
Piston Rod	12 l 16 l 20 l 20 l 25 l 25 l 32 l 40 l 40 l 50
Stroke	25mm to 500mm
Model	VNC
Seals	Buna – N / Viton / P.U. / Hi - Nitril (Viton on Request)
Pressure	0.5 ~ 10 kg/cm²
Temperature	-20°~ 80°C Max.
Tube	Aluminium Hard Anodized
End Cover	Aluminium Pressure Die Cast
Mounting	Female Clevise, Wall Bracket Mounting, Eye Rod Mounting, Fork Mounting, Clevis Foot Bracket, Clevis Foot Mounting, Foot Mounting, Front & Rear Trunnion Mounting, Male Clevis, Pivot Mounting, Rod End Aligner Mounting, Front/Rear Flange Mounting, Wall Bracket Mounting Female & Male Clevis, Center Trunnion Mounting
Note	For viton 0°C to 180°C temperature & For Non standard or longer stroke cylinders (Up to 2000mm) available on request



Description

Airmax Make “VNC” Model (Round Tube & Tie Rod) Pneumatic Cylinders as per ISO 15552 & VDMA 24562 Standard.

Features

• Double Ended
• Single Acting. N/O, N/C
• Double Acting.
• Magnetic
• Adjustable Cushioning

---

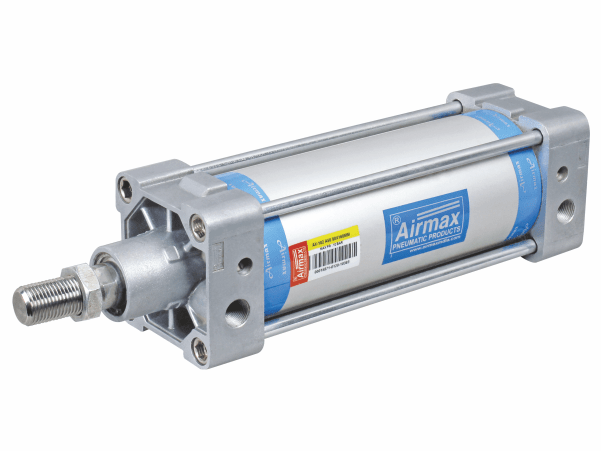

AX102 Model Pneumatic Cylinder

Product Details

Bore (mm)	32 l 40 l 50 l 63 l 80 l 100 l 125
Piston Rod	12 l 16 l 20 l 20 l 25 l 25 l 32
Stroke	25mm to 1000mm (Up to 2000mm)
Pressure	0.5 ~ 10 kg/cm²
Temperature	80˚C
Mounting	Female Clevise, Wall Bracket Mounting, Eye Rod Mounting, Fork Mounting, Clevis Foot Bracket, Clevis Foot Mounting, Foot Mounting, Front & Rear Trunnion Mounting, Male Clevis, Pivot Mounting, Rod End Aligner Mounting, Front/Rear Flange Mounting, Wall Bracket Mounting Female & Male Clevis, Center Trunnion Mounting
Medium	Compressed air - filtered - lubricated



Description

Airmax Make “AX102” – Model Air Cylinder as per ISO 6413 & CETOP RP43P Standard.

---

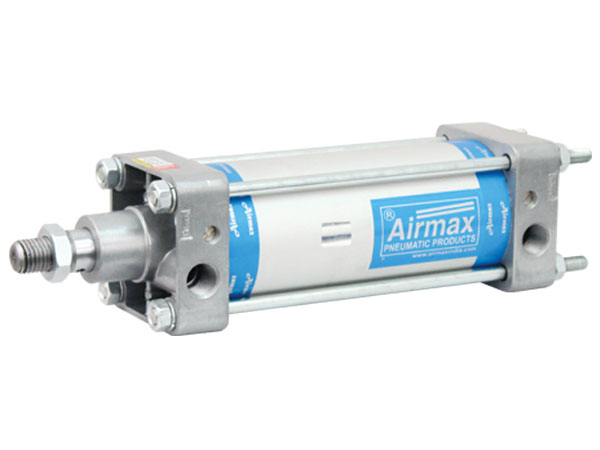

FMK Model K-05 Series

Product Details

Bore (mm)	25 l 40 l 50 l 65 l 75 l 100 l 125 l 150 l 200 l 250
Piston Rod	10 l 16 l 16 l 20 l 25 l 25 l 32 l 32 l 40 l 50
Stroke	25mm to 1000mm (Up to 2000mm)
Seals	Buna – N / P.U. / Hi - Nitril (Viton on Request)
Pressure	0.5 ~ 10 kg/cm²
Temperature	80°C / 100°C / 180°C Max.
Tube	Aluminium Hard Anodized
End Cover	Aluminium Pressure Die Cast
Mounting	Eye Rod Mounting, Fork Mounting, Front & Rear Trunnion Mounting, Pivot Mounting, Center Lug Mounting, Pivot Bracket & Pin Mounting, Rod End Aligner Mounting, Foot Bracket Mounting, Swivel Flange, Fixed Center Trunnion Mounting, Center Trunnion Mounting (Adjustable)



Description

Airmax Make “FMK” Model (Round Tube & Tie Rod) Heavy Duty Pneumatic Cylinders.

• Double Ended
• Single Acting. N/O, N/C
• Double Acting.
• Magnetic
• Adjustable Cushioning

---

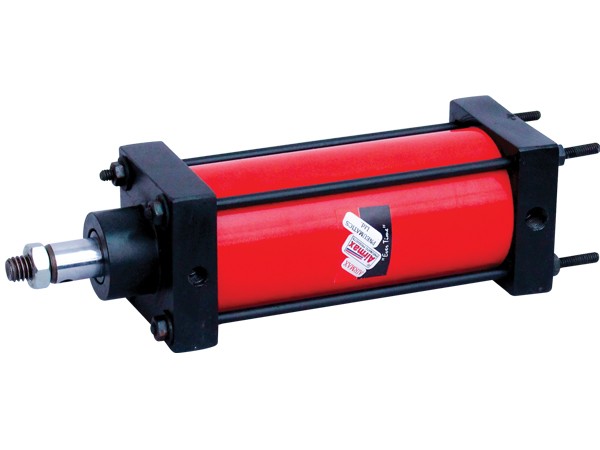

ASC Model 2414 Series

Product Details

Bore (mm)	50 l 65 l 75 l 100 l 125 l 150 l 200
Piston Rod	19.3 l 25.6 l 35.1 l 38.1
Stroke	Up to 3000 mm
Seals	Buna – N / P.U / Hi - Nitril (Viton on Request)
Pressure	0.5 to 10 kg/cm²
Temperature	-10°C to 80°C
End Cover	Cast Iron
Mounting	Center Trunnion Mounting, Eye Rod Mounting, Flange Mounting, Fork Mounting, Pivot Mounting, Pivot Bracket & Pin Mounting
Barrel	Aluminium Hard Anodized / MS
Note	High temperature up to 180°C available with Viton seals



Description

Airmax Make “ASC” Model (Square Type) Pneumatic Cylinders.

• Double Ended
• Single Acting. N/O, N/C
• Double Acting.
• Magnetic
• Adjustable Cushioning

---

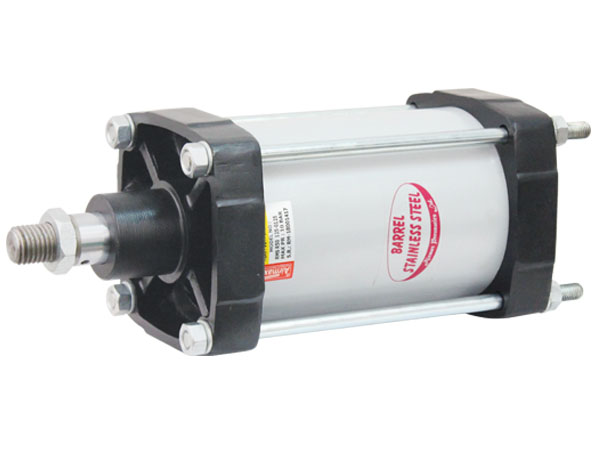

RMS Model Heavy Duty Pneumatic Cylinder

Product Details

Bore (mm)	125 l 150 l 200 l 250 l 300 l 350 l 400 l 450
Piston Rod	032 l 032 l 038 l 051 l 051 l 056 l 056 l 070
Stroke	Up to 2500mm
Seals	Buna – N / P.U. / Hi - Nitril (Viton on Request)
Pressure	Up to 12 kg/cm²
Temperature	80°C / 100°C / 180°C Max.
Tube	Stainless Steel / M.S. Tube (M.S. Seamless Tube with Hard Chrome Plated )
End Cover	C.I.
Mounting	Center Trunnion Mounting, Pivot Mounting, Eye Rod Mounting, Fork Mounting, Center Lug Mounting, Center Trunnion Mounting (Adjustable), Pivot Bracket & Pin Mounting, Flange Mounting, Front/Rear Trunnion Mounting (Fixed), Front/Rear Fixed Trunnion Mounting Top, Foot Bracket Mounting, Center Trunnion Mounting (Adjustable)



Description

Airmax Make “RMS” Model Heavy Duty Pneumatic Air Cylinders in SS Tube & Tie Road.



Excellent Features

• Large Range of Bore Size
• Stroke Available Up to 2500 mm
• Long Established Tie Road Design, Proven, Raggedness & Reliability
• Adjustable Cushioning at Both End
• Extensive Choice of Mounting
• Stainless Steel Barrel Up to 2500 mm
• Available in Both type Magnetic & Non Magnetic
• Double Ended
• Single Acting. N/O, N/C
• Double Acting

---

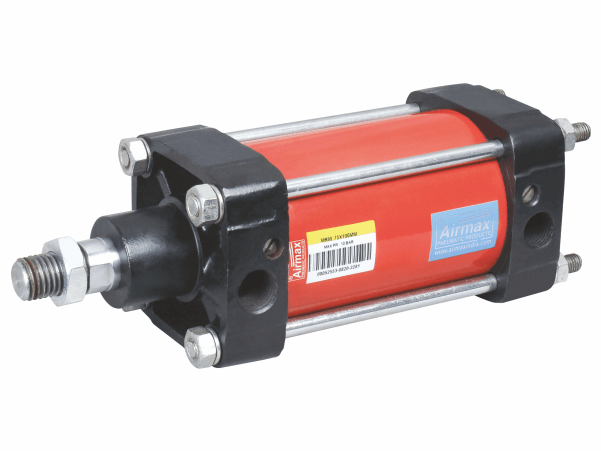

MRM Model M-50 Series

Product Details

Bore (mm)	100 l 125 l 150 l 200 l 250 l 300 l 450
Piston Rod	032 l 032 l 032 l 038 l 051 l 051 l 070
Stroke	25mm to 1000 mm (Up to 2000mm)
Seals	Buna – N / P.U. / Hi - Nitril (Viton on Request)
Pressure	Up to 12 kg/cm²
Temperature	80°C / 100°C / 180°C Max.
Tube	M.S. Tube (MS. Honed Tube with Hard Chrome Plated)
End Cover	C.I.
Mounting	Rod Eye Mounting with Hexagon Nut, Rod Clevis (FORK) Mounting with Hexagon Nut & Pin, Foot Bracket Mounting, Flange Mounting, Pivot Mounting (Rear Trunnion Mounting), Front / Rear Trunnion Mounting (FIXED), Front / Rear Fixed Trunnion On Top, Center Lug Mounting, Pivot Bracket & Pin Mounting, Center Trunnion Mounting, Center Trunnion Mounting (Adjustable / New Model)



Description

Airmax Make “MRM” Model (Steel Honed & Hard Chrome Plated Tube) Heavy Duty Pneumatic Cylinders.

• Double Ended
• Single Acting. N/O, N/C
• Double Acting.
• Magnetic

---

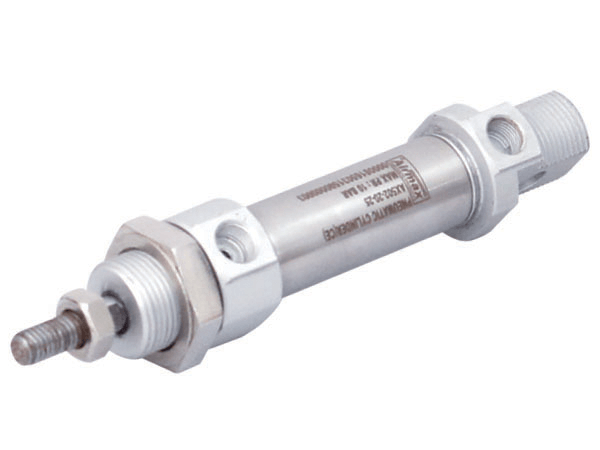

AX502 Model

Product Details

Bore (mm)	16 l 20 l 25
Piston Rod	06 l 08 l 10
Stroke	25mm to 500 mm
Valve Type	Double Acting
Pressure	0.5 to 9 kg
Temperature	-10°C to 70°C
Mounting	Clevis Foot Mounting, Eye Rod Mounting, Fork Mounting, Foot Mounting, Front & Rear Flange
Oper. Speed	50 ~ 500 (mm/sec)
Port Size	M5, 1/8"
Media	Compressed Air



Description

Airmax Make “AX502” – Model Pneumatic Cylinders as per ISO 6432 / CETOP RP52P Standard.

Features

• Non – Lubrication Oil Seal, Fits High Speed Movement.
• Maintenance free & Long Working Life.
• In Built Magnet in All Standard Model for Sensor & Switch at no Extra Charges.

---

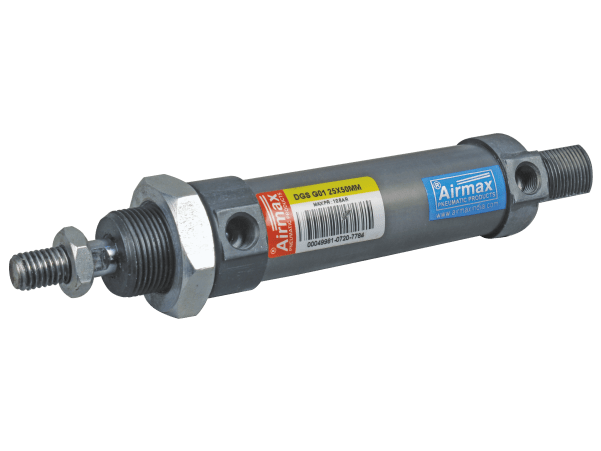

DGS Model G-01 Series

Product Details

Bore (mm)	12 l 16 l 20 l 25
Piston Rod	06 l 08 l 08 l 10
Stroke	25mm to 800mm
Seals	Buna – N / P.U / Hi - Nitril (Viton on Request)
Temperature	80°C / 100°C / 180°C Max.
End Cover	Aluminium Pressure Die Cast
Mounting	Clevis Foot Mounting, Eye Rod Mounting, Foot Mounting, Fork Mounting, Rod End Aligner Mounting, Flange Mounting 1 Flange with Mounting Bolts
Barrel	Aluminium Hard Anodized



Description

Airmax Make “DGS” Model Pneumatic cylinders.

• Double Ended
• Single Acting. N/O, N/C
• Double Acting.
• Magnetic

---

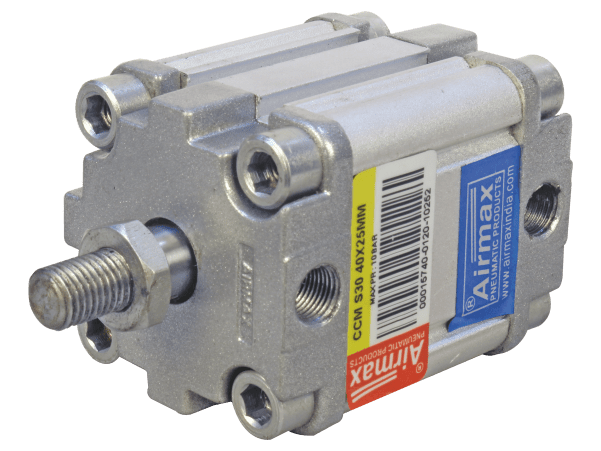

CCM & CCF Pneumatic Cylinder

Product Details

Bore (mm)	32 l 40 l 50 l 63 l 80 l 100
Piston Rod	12 l 12 l 16 l 16 l 20 l 20
Stroke	10mm to 80mm
Seals	Buna – N / P.U / Hi - Nitril (Viton on Request)
Pressure	0.5 ~ 10 kg/cm²
Temperature	5°C to 60°C Max
End Cover	Aluminium Pressure Die Cast
Mounting	Female Clevise, Wall Bracket Mounting, Eye Rod Mounting, Fork Mounting, Clevis Foot Bracket, Clevis Foot Mounting, Foot Mounting, Front & Rear Trunnion Mounting, Male Clevis, Pivot Mounting, Rod End Aligner Mounting, Front/Rear Flange Mounting, Wall Bracket Mounting Female & Male Clevis, Center Trunnion Mounting
Barrel	Aluminium Hard Anodized
Note	Viton Seals available on Request for High Temperature



Description

Airmax Make “CCM / CCF” Model (Square Profile Tube) Compact Pneumatic Air Cylinders as per ISO 21287 Standard.

Let’s Have a Look on:

• Hard Anodized Aluminium Profile (Square) Cylinder Barrel.
• Bore Size ⌀32 to ⌀100 mm
• Compact Design
• Magnetic and Non Magnetic
• A Wide Range of Mounting
• Magnetic Sensor Common For all Sizes
• 50% Less Installation Space
• Double Ended
• Single Acting. N/O, N/C
• Double Acting
• Cost Effective
• High Performance
• Safe & Reliable

---

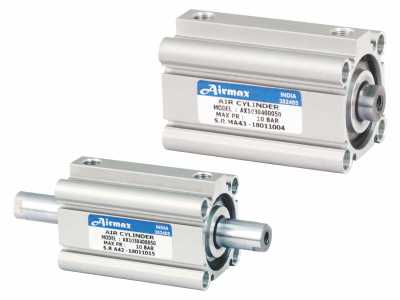

AX 103 Single/Double Ended Pneumatic Cylinder

Product Details

Bore (mm)	32 l 40 l 50 l 63 l 80 l 100
Stroke	10mm to 100 mm
Model	AX 103
Valve Type	Double Acting & Double Ended
Pressure	0.2 to 8 Bar
Temperature	Up to -5 ~ 60 °C Max.
Media	Air



Description

Airmax Pneumatics Make “AX103” – Model Double Ended Pneumatic Air Cylinders in India.

Features



• Available in Male & Female Thread
• Compact, Light Weight & Space Saving Design
• Large Clamping force in relation to their size
• Low Fiction
• Maintenance free & Long Working Life.

---

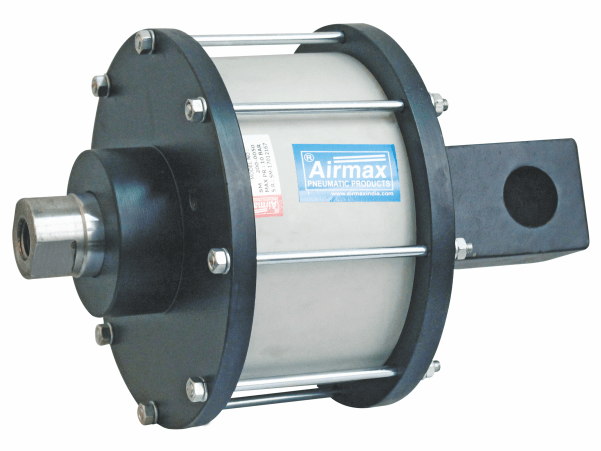

SM Model Pneumatic Air Cylinder

Product Details

Model	SM
Size	200 X 50 mm
Shaft	EN8 Hard Chrome Plated
Seals	Buna – N ( Viton Available On Request)
Pressure	10 Kg/cm²
Temperature	Upto 80°C
End Cover	Cast Iron
Barrel	Aluminium

---

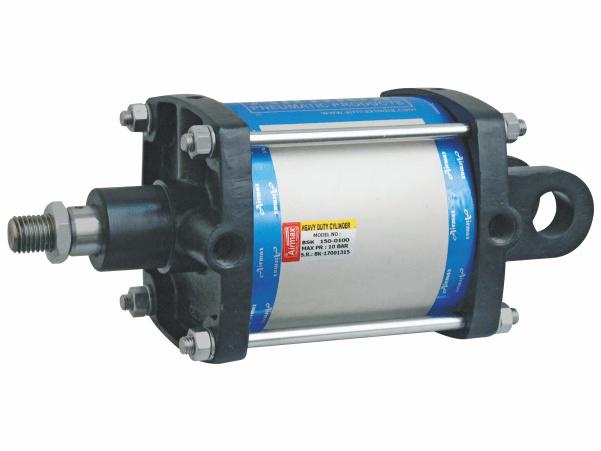

BSH Model Pneumatic Air Cylinder

Product Details

Model	BSH
Size	150 X 100
Shaft	EN8 Hard Chrome Plated
Seals	Buna – N (Viton Available On Request)
Pressure	10 Kg/cm²
Temperature	Upto 80°C
End Cover	Cast Iron
Barrel	Aluminium

---

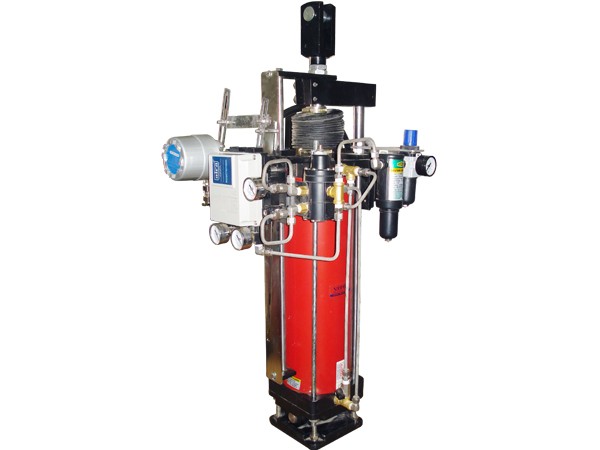

Pneumatic Power Cylinder

Description

Power Cylinder consists basically of a double acting pneumatic cylinder with positioner, Filter+Regulator & Fitting Accessories. We Designed Power Cylinder to operate as an actuator in a pneumatic control system to position the final control element following the controller signal (3 to 15 psi or 0.2 to 1.0 Kg/Cm² or 4 to 20 amp.)

Design Feature

• Wide range of sizes & strokes
• Trunnion mounting or end mounting option
• Easy reversal of action
• Linear or special characterized can available
• Choices of the rod end, ball socket joint, or fork end with knuckle rod joint
• Low air consumption
• Various accessories option available
• Materials of construction selected to ensure long life



Associated Benefits

• Proven Design
• Reduced Maintenance
• Assured Product Quality
