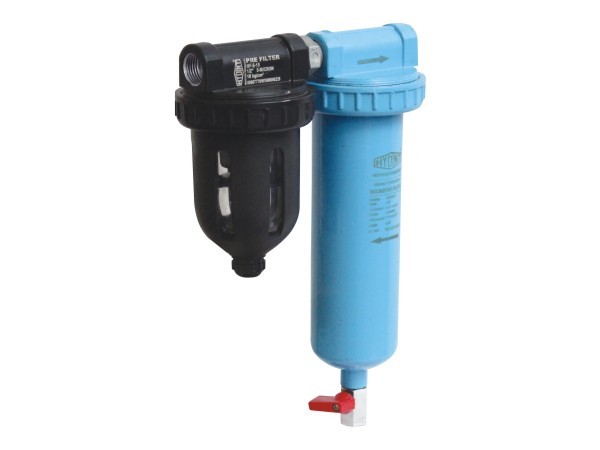

Pre-filter With Microfine Filter

Product Details

Body	Aluminium Press. Die Cast
Bowl	P.C. Bowl / Metal Bowl
Oper. Speed	Upto 10Kg/Cm²



---

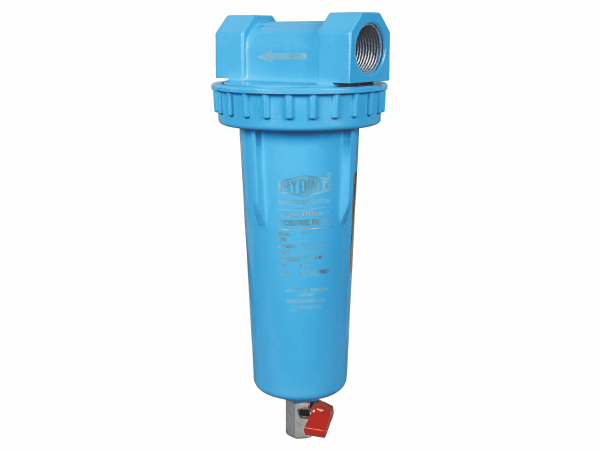

Microfine Filter

Product Details

Model	HPF5
Body	Aluminium Pressure Die Cast & Steel Fabricated
Bowl	Aluminium / C.S. Powder Coated
Flow Rate of SCFM	21 to 12715
Filter Element	0.01 micron
Filter Element Life	Maximum 1 Year / Depending on the usage (Replaceable)
Pressure	0 to 10 kg/cm²
Media	Compressed Air
Efficiency	0.1 ppm w/w maximum remaining oil content

---

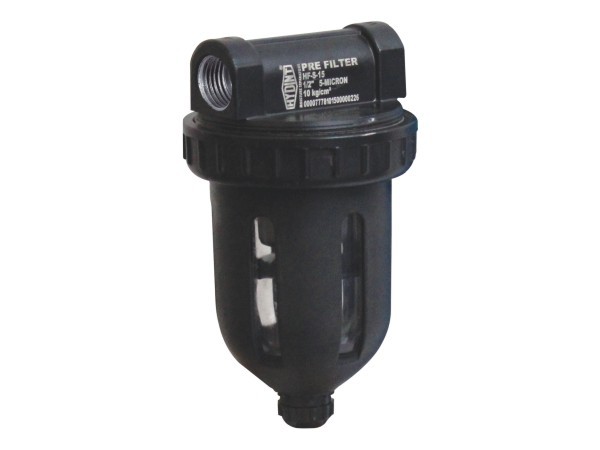

Pre Filter

Product Details

Body	Alluminium Press. Die Cast
Bowl	P.C. Bowl / Metal Bowl
Element	5 Micron
Oper. Speed	Upto 10Kg/Cm²
